How the caps fit together

The caps exist because Tilth runs unattended. An interactive agent doesn't need a hard ceiling — a human watching the scrollback notices a runaway and stops it. Tilth has no such human for the length of a run, so the caps are that human: a budget the harness enforces on its behalf. They're set deliberately loose (a stuck task should be the exception), and a hit is always loud and resumable rather than silent.

At any moment during a run, seven things can stop it:

1. All prd.json tasks done — happy path; outer loop exits cleanly.
2. MAX_WALL_CLOCK_MINUTES exceeded — outer loop checks at the top of each task; the current task finishes first.
3. MAX_TOKENS exceeded — same enforcement granularity as wall-clock; inter-task only.
4. MAX_ITERATIONS_PER_TASK exceeded inside a single task — that task is marked failed, the run halts (does not continue to the next task — failures are halting events, not skip events). The next tilth resume flips the failed task back to pending and the agent retries it with a fresh iteration budget; partial work survives via a soft-reset of the FAILED placeholder commit.
5. MAX_EVALUATOR_CALLS_PER_TASK exceeded inside a single task (optional; 0 = off, the default) — same shape as cap 4: task marked failed with reason evaluator_cap, run halts, tilth resume retries with a fresh budget. Targets the worker↔evaluator ping-pong case where the iteration budget alone would let the worker keep retrying right up until iter_cap.
6. 3 consecutive empty model responses inside a single task — a turn with no tool calls, no content, no reasoning (a provider hiccup; observed: an endpoint that 200s with zero usage tokens). Same shape as cap 4: task marked failed with reason empty_responses, run halts, tilth resume retries. Empty calls cost no tokens, so the token cap can't catch a stuck endpoint — this backstop does. Fixed at 3 retries (with backoff); no env knob.
7. 3 consecutive worker turns without a case inside a single task — the worker went quiet but never called submit_case. After 3 nudges the task is marked failed with reason no_case, run halts, tilth resume retries. Fixed at 3; no env knob.

Caps 2 and 3 are session-level. Caps 4–7 are task-level. There is no per-call cap and no per-task token cap. Caps 6 and 7 aren't env-tunable — they're fixed circuit-breakers against a dead endpoint or a worker that never presents its case. That's the full safety story.

What hitting a cap looks like

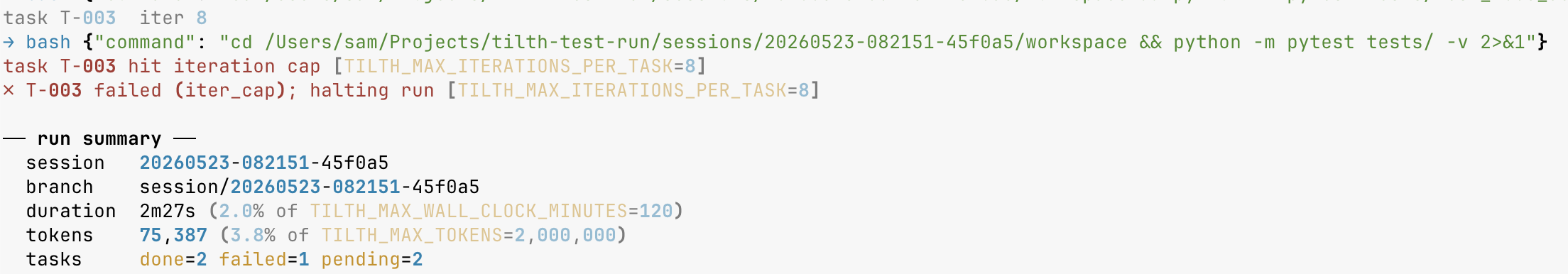

A cap-4 (iter_cap) hit, with the post-run summary the harness prints on the way out:

Two things to read here. Top: the cap fires and the run halts mid-task list (T-003 of five). Bottom: the run summary surfaces every cap as a percentage, so it's obvious which one bit — duration and tokens are both well under, only iterations were tight. (This capture predates the default bump — the cap was set to 8 for this run, below today's default of 32 — which is why it halts this early.)

The failed=1 pending=2 line in the summary is what tilth resume reads to plan its retry — see Resuming a session for what picks up from this exact point (same session id).

Diagram suggestion — a layered cap diagram: an outer ring labelled "Session-level caps (MAX_WALL_CLOCK_MINUTES, MAX_TOKENS)" containing an inner ring labelled "Task-level stops (MAX_ITERATIONS_PER_TASK, MAX_EVALUATOR_CALLS_PER_TASK, plus the fixed empty_responses / no_case backstops)." A central node represents the worker model call. Annotate each ring with what happens on hit (run stops vs. task fails + run halts).

Cross-references

• See The two loops for the loop structure that the caps gate, including the inner-loop flow chart that shows where iter_cap, evaluator_cap, empty_responses, and no_case are emitted.
• See Token recording for where MAX_TOKENS is read, where the running counter lives, and the trade-off behind between-task enforcement.
• See Resume mechanics for what tilth resume does to a cap-stopped run (and why a token-cap stop will re-trip immediately unless you bump the cap).
